In this case study article we discover how Proteus Switchgear was first past the post when a world- renowned equestrian event required a tailor- made upgrade to its electrical infrastructure.
Proteus Switchgear, the Midlands-based manufacturer of industrial switchgear, has recently completed a successful project: designing, quoting, and manufacturing a bespoke Low Voltage (LV) switchboard to meet the specific requirements of one of its electrical contracting customers, MS Electrical, Bristol.
The project was undertaken for the prestigious Badminton Horse Trials venue, the world-renowned international equestrian event in May.
MS Electrical approached Proteus Switchgear via its local electrical wholesaler, with a unique set of requirements.
The venue required a switchboard upgrade to enhance its electrical infrastructure while ensuring future proofing for increased demand. However, the new installation had to fit within an existing space, making customisation of the switchboard’s shape and size essential.
Proteus Switchgear worked closely with the contractor to understand these needs and provided a tailored solution, including all circuit protection requirements.

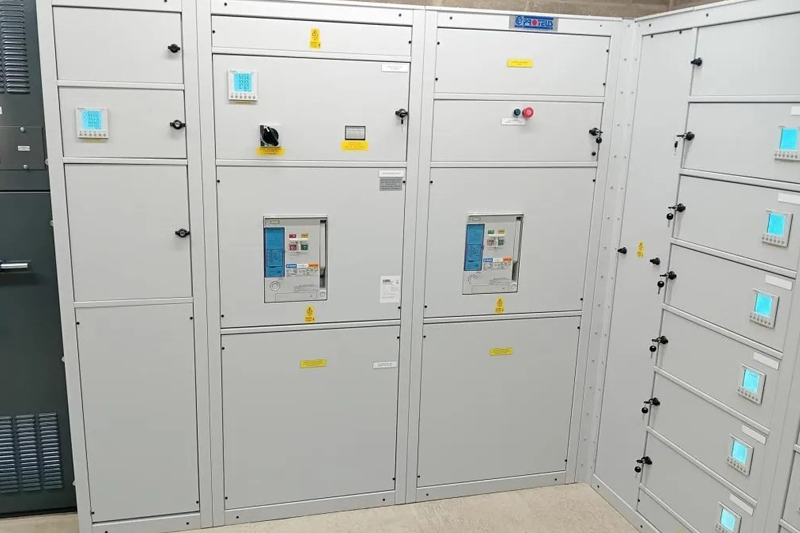

To meet the client’s specifications, Proteus’ quotation department designed a custom ‘L’ shaped LV switchboard incorporating the following:
1,000 A ACBs with motor mechanism, mains and generator incomers
Ensuring reliable power distribution, should the mains supply fail.
MID-approved meters with comms
Providing accurate energy measurement and efficiency, an Ethernet gateway is used for remote data collection.
Type 1+2 surge protection
Safeguarding equipment from voltage spikes.
Multiple electronic MCCB outgoing ways
Allowing for flexible power distribution to various site facilities.
Auto changeover controls
Enabling transfer between power sources, ensuring continuous uninterrupted operation during events.
The in-house quotations team produced detailed drawings of the ‘L’ shaped switchboard, which were submitted for contractor approval before manufacturing commenced. This collaborative approach ensured that all technical and logistical requirements were met precisely.
Following approval, work commenced at the Telford-based operation on manufacturing the nearly 8 metre long ‘L’ shaped switchboard using high quality components, state-of-the-art processes and rigorous quality control procedures.
The final product was delivered on schedule, ensuring the venue’s electrical infrastructure was fully upgraded in time for its busy event season, which is showcased on television. The new switchboard not only fitted seamlessly into the available space but also provided enhanced capacity to support future expansions.
The successful delivery of this bespoke LV switchboard showcases Proteus Switchgear’s expertise in designing and manufacturing custom electrical solutions tailored to clients’ needs as well as its customer-centric approach.
By closely collaborating with the electrical contractor and understanding the unique challenges of the Badminton Horse Trials venue, Proteus has ensured a future-proofed installation, supporting one of the most exciting events in the global equestrian calendar.
